High-Voltage Safe Measurement Systems

Safe - Precise - Flexible

For measurement on high-voltage components with certified safety – in test drives, field tests, and on test benches: CSM’s high-voltage measurement systems are specifically designed for the safe and accurate acquisition of temperatures and analog sensor signals in HV environments, especially in electric and hybrid vehicles.

CSM Image Map hvipe hvpt LEM Sensors hvbm hvstg HV AD Modules hvth

Safe and efficient measurements in high-voltage environments

Measurement systems from CSM provide safety from HV damage in the entire measurement chain - from the sensor to data acquisition software, and the user. As with our other CAN and EtherCAT® modules, they ensure fast installation as well as precise and reliable measurement results over the entire operating temperature range.

Measured values

Key features of high voltage safe measurement systems

  • Certified high-voltage safety (per EN61010) for the entire measurement system consisting of CSM's measurement modules and specifically designed multi-channel cables
  • Reinforced isolation up to 1,000 V separates the measurement chain from the communication bus
  • 100% end-of-line testing of every module; including testing certificate
  • High measurement accuracy even under extreme temperature and environmental conditions
  • Available in MiniModule housings for mobile use in distributed measurement applications, and as 19'' slide-in modules for use in test benches and in vehicles
  • Specially developed sensor cables to ensure safe connections of sensors to measurement modules

CSM HV-measurement systems offer certified safety in accordance with EN 61010

By using CSM measurement systems, high voltage safe measurement chains can be set up, from the point of measurement to the data acquisition computer or logger. Each module is subjected to a routine test prior to shipment. The double-insulated multi-channel cables also play an important role in the system. These cables are pre-assembled with fully insulated plastic connectors. With each multi-channel cable up to four points of measurement can be safely connected to a measurement module. This reduces time and costs for cabling. In addition, the double insulation increases the protection against damage caused by chafing. The inner insulating layer is colored blue, so that damaged cables can be detected before a hazard to the user arises.


Download Language

9.63 MB


HV-safe measurement modules for test drives and test benches

HV-safe measurement modules for test drives and test benches.

The double-insulated multi-channel cables with fully insulated plastic connectors play an important role in the system

The multi-channel cable with fully insulated plastic connector provides a reliable connection of the whole measurement system.

cross-section of the multi-channel cable

A specifically designed cross-section provides additional safety.

HV BM Split Modules

HV BM Split Modules

Measurement of internal conductor current and voltage as well as power analysis in confined spaces

The HV BM Split Modules use the proven technology of the HV Breakout Modules for fast and precise measurement of internal conductor current, voltage and power even in confined spaces. HV BM Split Modules can be used to perform measurements in HV power cables or also on busbars.

Read more »

HV Breakout Modules

HV Breakout Modules

Measurement of internal conductor current, shield current and voltage as well as power analysis directly in HV cables

The HV Breakout Modules (BM) are specifically designed for safely measuring directly from HV voltage power cables. Currents and voltages are measured directly and the raw data is acquired at up to 2 MHz per channel. With the Vector eMobilityAnalyzer software, which is optimally paired to the CSM HV Breakout Modules, real time power analysis is also possible.

Read more »

Product HV DTemp

HV DTemp Measurement System

Digital temperature measurement with up to 512 measurement points

The CSM HV DTemp measurement system is designed for the digital and precise measurement of up to 512 temperature measurement points via a single cable connection to the HV DTemp Central Unit.

Patent pending

Read more »

Hochvolt AD Messmodule

High-Voltage AD Measurement Modules

With its HV AD measurement modules, CSM has designed a safe measurement system allowing for the use of standard sensors with analog voltage outputs as well as for direct voltage measurements in high-voltage environments.

Read more »

Product HV IEPE3


Measurements with IEPE sensors

Type FL100

The FL100 has been specifically designed for measuring analog voltages from IEPE sensors, such as triaxial accelerometers, in high-voltage environments.

Read more »

HV PT Measurement Modules

HV PT Measurement Modules

Safe temperature measurement with PT100 and PT1000 sensors

CSM's HV PT measurement modules allow precise temperature measurements with PT100 and PT1000 resistance sensors in a high-voltage environment.

Read more »

Product HV TH

HV TH Measurement Modules

Safe temperature measurement with K-type thermocouples

Safe temperature measurements with thermocouples on high-voltage components: the high-voltage-safe temperature measurement modules are specifically designed for the reliable acquisition of temperatures in electric and hybrid vehicles.

Read more »

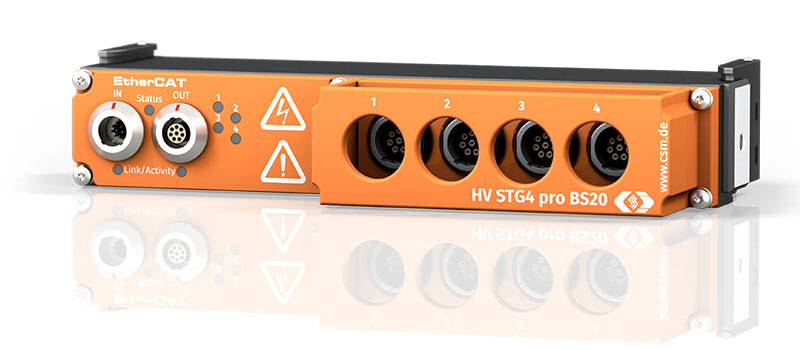

HV STG4 ECAT MM series

High-voltage safe measurement with strain gauges

Type HV STG4 pro BS20

EtherCAT®-based measurement module for distributed use under demanding conditions in the high-voltage environment: robust, extremely compact and with 4 time-synchronous strain gauge inputs.

Read more »

Hochvolt Prüfstandsmodule

High Voltage Safe Test Bench Modules

Safe high-voltage measurements in test benches: With the 19-inch slide-in modules, CSM has created an effective product portfolio for the safe measurement of analog voltages, currents, pressures, humidity and temperatures on high-voltage components in test benches and also in vehicles.

Read more »

HV Isolation Testing Station

HV Isolation Testing Station

Operational safety test of high-voltage measurement modules

The high risk potential during measurements in high-voltage environments requires an enhanced safety awareness. This means: The user’s life and health should be put in the first place.

Read more »
