High Voltage Safe Test Bench Modules

Safe high-voltage measurements in test benches: With the 19-inch slide-in modules, CSM has created an effective product portfolio for the safe measurement of analog voltages, currents, pressures, humidity and temperatures on high-voltage components in test benches and also in vehicles.

Measured values

Key features

  • Fast integration in existing bench infrastructures thanks to 19-inch slide-in modules and open interfaces (CAN bus)
  • Same module for the use in test benches and in vehicles
  • Certified safety concept in accordance with DIN EN 61010; routine test including testing certificate
  • Reinforced insulation up to 846 V
  • High measurement accuracy and very low temperature drift over the entire operating temperature range from up to -40 °C to +85 °C
  • Compact and robust design with protection class IP65



Safe high-voltage measurements in test benches: With the 19-inch slide-in modules

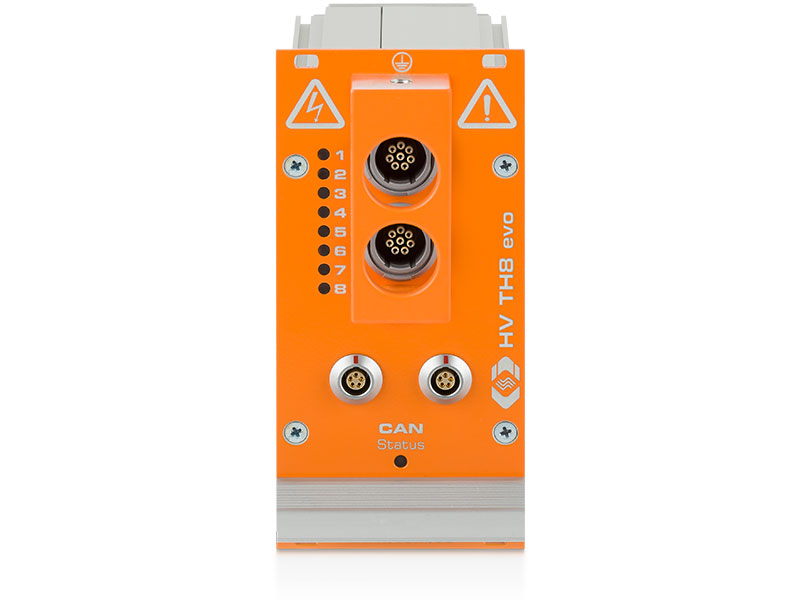

HV TH8 evo

Test bench module overview

Designation Measured value max. Measurement Range Channels
HV AD8 OW20 Analog signals ± 90 Volt 8
HV AD4 IF1000 Analog signals (with sensor excitation) ± 20 Volt 4
HV AD4 OW1000 Analog signals ± 90 Volt 4
HV AD4 XW20 Analog signals ± 1,000 Volt 4
HV AD4 XW1000 Analog signals ± 2,000 Volt 4
HV TH8 evo Temperature (Thermocouple Type K) -100 °C to +1372 °C 8
HV PT-TBM 8 Temperature (PT100/PT1000) -100 °C to +500 °C 8
HV DTemp-P Central Unit Temperature (Digital IC-sensors) -40 °C to +125 °C 2
