CSM UNICOM Programming Tools

The following table shows the differences between the CSM UNICOM models.

For more information about CSM and UNICOM, see the company website.
If you need support for UNICOM, please use the CSM support page or write an email to unicom@csm.de.

UNICOM uses modules (*.smod) to extend the basic features of UCBASE with specific commands and functions. A collection of common modules with up-to-date versions for UNICOM4 Rev.E and UNICOM3 Rev.D, Rev.C1 and Rev.C can be downloaded here.

For information about hardware and connectors of the UNICOM models, download the package with documentation and firmwares.

UNICOM models

Model	Article	Revision	Status	FD	ETH	FLX	freq	ram	mem	lan	single	gpio	vio1	vlvout

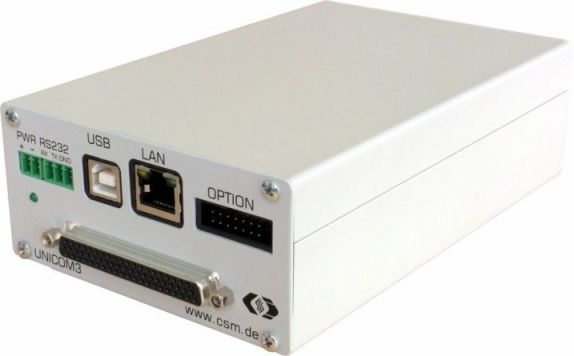

UNICOM3	ART2020103	D431	upon request	YES	no	no	80 MHz	4 MB	64 GB	yes	yes	8	i/o	yes
UNICOM4 ETH	ART2020501	E101	upon request	YES	YES	no	100 MHz	128 MB	64 GB	yes	yes	12	i/o	yes
UNICOM3 ETH FLEXRAY	ART2020104	D430	upon request	YES	YES	YES	80 MHz	4 MB	64 GB	yes	yes	8	i/o	yes
UNICOM4 ETH FLEXRAY	ART2020502	E102	upon request	YES	YES	YES	100 MHz	128 MB	64 GB	yes	yes	12	i/o	yes
UNICOM3 classic	ART2020303	C111	end-of-life	YES	no	no	60 MHz	4 MB	2 GB	no	no	8	out	no

For overview only. CSM reserves the right to make technical modifications at any time without notice. Contact CSM for more information.

LEGEND:

FD	CAN_FD interfaces
ETH	Ethernet interfaces
FLX	Flexray interfaces
freq	operation frequency
ram	main system memory
mem	file system capacity
lan	LAN connection to PC
single	single-wire CAN (pin 5)
gpio	number of general-purpose IOs
vio1	function of VIO1 signal (pin 13)
vlvout	VLV_OUT signal (pin 27)
