Fail-Safe Data Recording
Fail-Safe Data Recording

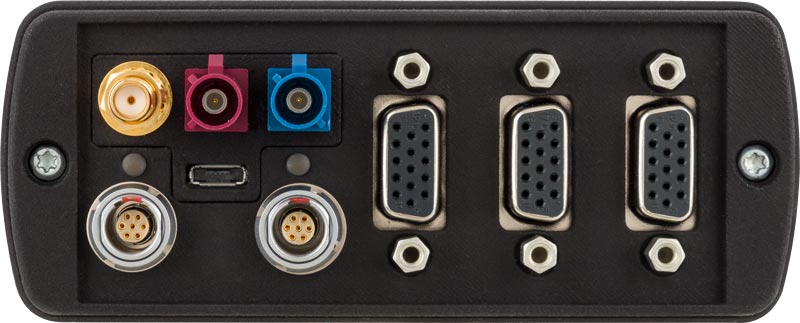

With up to 12 CAN bus interfaces, freely configurable digital inputs and outputs, Wake-on-CAN, LAN, WLAN - When developing the UniCAN 3 data logger, numerous requirements from state-of-the-art vehicle development were taken into account.
As a further development of the proven UniCAN 2 stand-alone data logger, you will also be very well prepared for future measurement tasks with the CSM UniCAN 3 data logger.
As already known from the UniCAN 2, the UniCAN 3 optionally supports various CAN protocols (CCP, XCP,...) and software extensions (CANsend, CAN stimulation,...).

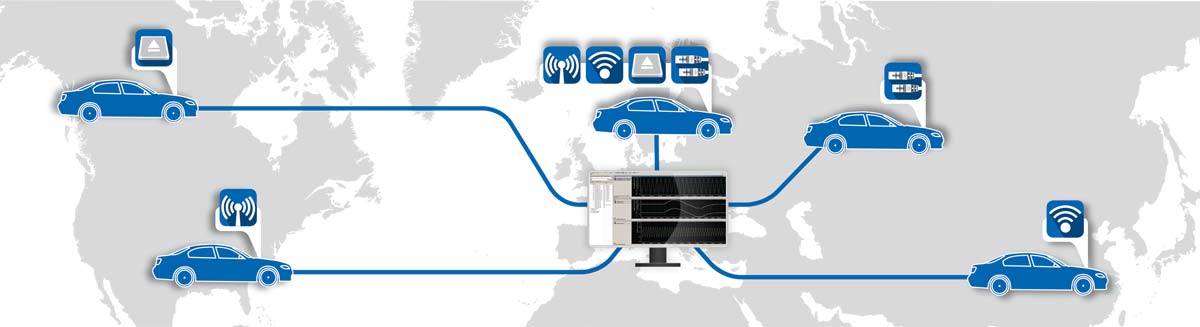

The recorded data can be transmitted via LTE or WLAN, alternatively also locally via network (LAN), USB or by changing the CF card.
A wide range of functions is available for data transmission to effectively integrate the post-processing of UniCAN 3 recorded data in your internal processes. Due to the use of the LTE modem and WLAN, data can be transmitted while the recording of data continues. The interfaces can also be used to change the logger configuration during operation. If remote data transmission is not desired, the data transmission can be carried out via network (LAN) or simply by changing the CF card.
The UniCAN 3 data loggers are offered in different hardware and software versions. Please find an overview below:
| Number of CAN | up to 12 |
|---|---|
| Recording of CAN messages (trace) | |
| Recording of CAN signals | |
| Number of message groups | 8 |
| Number of channel groups | 8 |
| CAN FD | |
| CAN galvanically isolated | |
| Number of digital I/O | 4 |
| USB | |
| LAN | |
| CF Card support | up to 64 GB |
| GPS | |
| LTE / UMTS / EDGE / GPRS | |
| WLAN | |
| Data upload | |
| CCP | |
|---|---|
| XCP-on-CAN | |
| CCP Block Read | |
| OBD2 / EOBD | |
| J1939 | |
| CANsend | |
| CAN Stimulation | |
| Wake on CAN | |
| Seed & Key | |
included
optional
The FPGA-/µ-controller- based CAN bus data loggers of the UniCAN 2 Professional family have features that are otherwise - if at all - only found in - PC-based devices. At the same time they offer unique data security.
The UniCAN 3 ETH is a compact and robust data logger for the acquisition of data from various sources: With the Ethernet interface, nine CAN interfaces, digital inputs and outputs and numerous data transmission options, it can be used flexibly in any measurement task.
