HV Breakout Module 1.2 +S

Single-phase measurement of shield current, inner conductor current, voltage and power

The HV Breakout Module (BM) type 1.2 +S is specially designed for single-phase measurements on HV voltage power cables. It is suitable to simultaneously measure power, inner conductor current, shield current and voltage of DC and high-speed AC.

Highlights

  • Measurement of shield current (I), inner conductor current (I) and voltage (U) in HV applications
    • Shield currents up to ±250 A (rated ), ±500 A (peak)
    • Internal conductor currents up to ±1,000 A (rated), ±2,000 A (peak)
    • Voltages up to ±1,000 V (measurement range up to ±2,000 V)
    • Calculation of the instantaneous power in the module
  • Simultaneous EtherCAT® and CAN bus communication
  • Output of shield current, internal conductor current, voltage and instantaneous power with up to 1 MHz measurement data rate

  • Optional calculation of power and RMS values directly in the module and output via CAN
  • In-depth online power analysis with the Vector eMobilityAnalyzer software

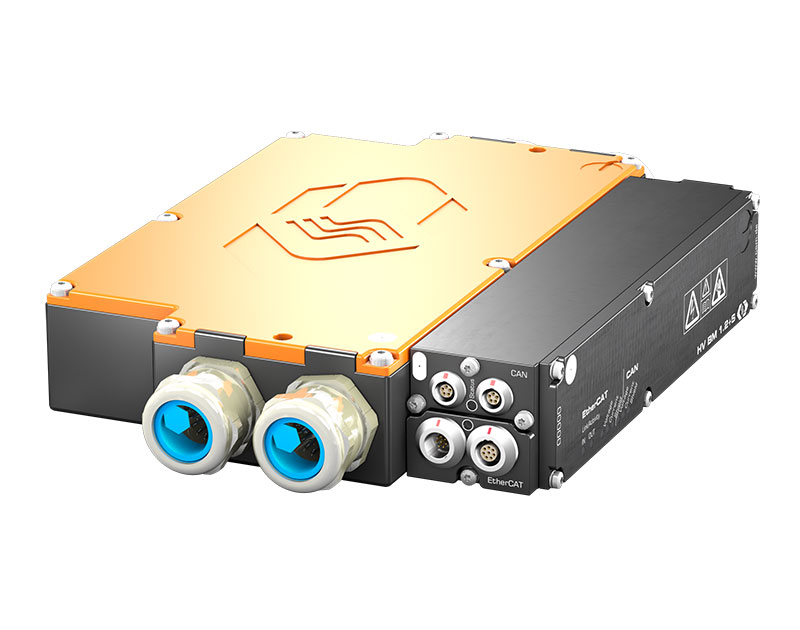

HV Breakout Module Type 1.2 +S
HV Breakout Module Type 1.2 +S

Description

The HV BM 1.2 +S is inserted directly into the HV power cables (HV+/HV-) by passing the cables through cable glands into the interior of the module and connecting them there using ring terminals.

The voltage is measured directly. The current measurements are performed via two shunt modules, which contain differential amplifiers as well as temperature sensor and memory for calibration data for automatic online temperature compensation. One shunt is used for the inner conductor current, the other for the shield current.

The HV BM 1.2 +S outputs the measurement data with a maximum data rate of up to 1 MHz via the EtherCAT® interface and simultaneously with a data rate of up to 10 kHz via the additional CAN interface. This enables fast data acquisition via Ethernet with simultaneous data recording via CAN.

Calculation of power and RMS values

With the option Calc. active, apparent and reactive power, power factor as well as the RMS values for current (inner conductor current) and voltage can be calculated directly in the module from the sampled measured values. Via CAN the calculated values are directly transmitted to the measurement computer or a data logger.

Technical Data

HV Breakout Module Type 1.2 +S
Inputs HV power cable for HV+ and HV-
Number of measured phases 1
Number of cable glands 2
per side
Cable outer diameter 9 mm to 25 mm
Depending on the mounted cable glands. See data sheet.
Measurement signals Shield current, inner conductor current, voltage and instantaneous power
Shield current
(Rated current)
±50 up to ±250 A
Four configurable measuring ranges, depending on the mounted shunt module. See data sheet.
Inner conductor current
(Rated current)
±50 up to ±1,000 A
Four configurable measuring ranges, depending on the mounted shunt module. See data sheet.
Voltage ±100, ±200, ±500, ±1,000, ±2,000 V
For the acquisition of transient overvoltage, the measuring range is dimensioned to ±2,000 V.
Power calculation Permanently online with 1 MHz
Measurement data rate
ECAT 1, 2, 5, 10, 20, 50, 100, 200, 500, 1,000 kHz
CAN 1, 2, 5, 10, 20, 50, 100, 200, 500 Hz, 1, 2, 5, 10 kHz
Output signals
ECAT Voltage, shield current, inner conductor current, instantaneous power
CAN Voltage, shield current, inner conductor current

With option Calc. additionally: RMS values for voltage and current (inner conductor current), active power, apparent power, reactive power and power factor Lambda
Integration time RMS value and power calculation 10 ms to 10 s
Operating conditions
Housing protection class IP67
Operating temperature range -40°C to +120°C
Pollution degree 4

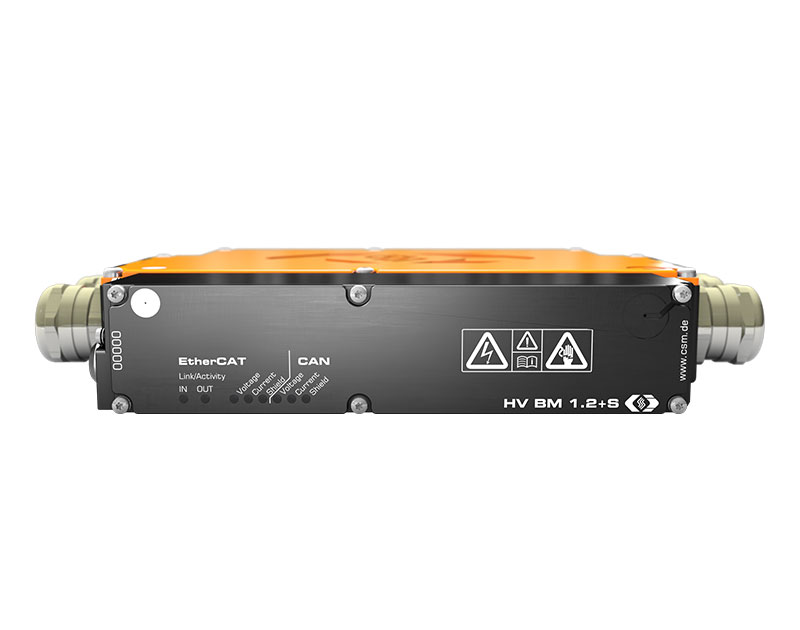

HV Breakout Module Type 1.2 +S front view
HV Breakout Module Type 1.2 +S front view
HV Breakout Module Type 1.2 +S side view
HV Breakout Module Type 1.2 +S side view
HV Breakout Module Type 1.2 + S top view
HV Breakout Module Type 1.2 + S top view

Applications

With the HV Breakout Module 1.2 +S, shield currents can be measured safely and precisely at many points in the vehicle electrical system. In addition to the measurement of shield currents, the internal conductor current and HV voltage are also acquired - the synchronous measurement of all measured variables in a single module considerably simplifies handling and instrumentation. The high-voltage vehicle electrical system can be designed safely and efficiently on the basis of the subsequent analyses, and serious consequences such as cable fires and premature component failures can be avoided.

The direct output of power and RMS values allows various analyses without the use of special hardware and software in the road test. More in-depth analyses, such as the investigation of leakage currents and symmetries as well as the correlation with measured values from further CSM measurement modules (e.g. temperatures) can be performed with the Vector CSM E-Mobility Measurement System.
