HV AD ECAT Measurement Modules

Measurement Ranges up to ±1000 V and up to 1 MHz data rate

HV AD4 XW1000 measurement modules provide four analog inputs and are specifically designed for the measurement of high voltages in high-voltage environments.

Due to housing design and technical specifications, these measurement modules are particularly suited for mobile use in the field of e-mobility (electric and hybrid vehicles). The 19-inch slide-in module was specially developed for stationary use, e.g. on test benches.

HV AD4 ECAT measurement modules offer a maximum measurement data rate of up to 1 MHz per channel and can be used for the acquisition of very fast analog signals of up to 1,000 V (peak).

Key-Features

  • four analog inputs with reinforced insulation
  • measurement data rate up to 1 MHz per channel
  • measurement range up to ±1,000 V (extended up to ±2,000 V)
  • measurement range adjustable per channel
  • precise synchronization (modules & channels), a key criterion for power calculation, etc.
  • measurement categories of the MiniModul variants:
    • CAT 0: 1,000 V
    • CAT II: 600 V
    • CAT III: 300 V

E-Mobility: Safe measurements on high-voltage components

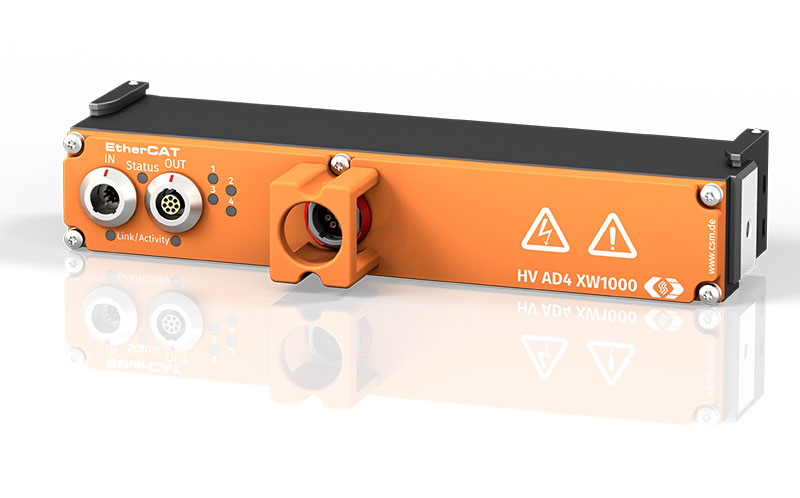

HV AD4 XW1000
Safe measurements on high-voltage components - HV AD4 XW1000
